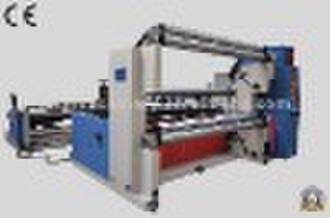

JT-SLT-1300C wall paper Slitting and Rewinding Ma

Specifications: --wall paperSlitting and Rewinding Machine is specializing in slitplast filmand some rigid material into small jumbo roll, we can supply the width from 1300mm to 1800mm machine. --wall paperSlitting and Rewinding Machine adopts our Frequency Inverter motorto control the material feeding and tension seperate. Which has a merits of higher speed, higher precision and stable function. --wall paperrewinder machine adopts Automatic Tension Control System which assume the constant tension for the material feeding. --wall paperrewinder machine is used to slit and rewind materials from 50gsm to 800gsm in thickness, such as various paper, polypropylene, polyethylene, lamination material, and monolayer aluminum foil so on. It adopts duoble Frequency Inverter system(PLC) and it has features of photocell tracing system, (hydraulic rectification system is available), automatic loading system, precision and high speed etc. Main Technical Parameters: Max. Unwinding Width 1300mm Max. Unwinding Dia. 1500mm Max. Rewinding Dia. 500mm Max. Speed 16-200m/min Main Power 2.2-5.5kw Weight 2800kg Overall Dimensions(LxWxH) 2900x1800-2300x1500mm If you need more information, please feel free to contact us!
